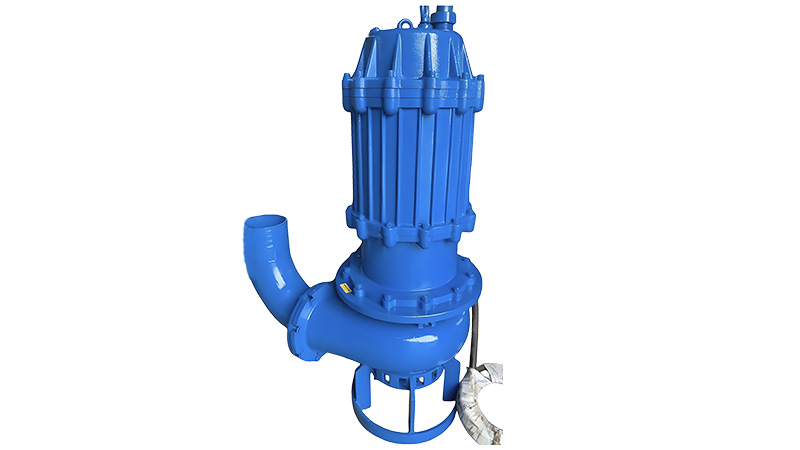

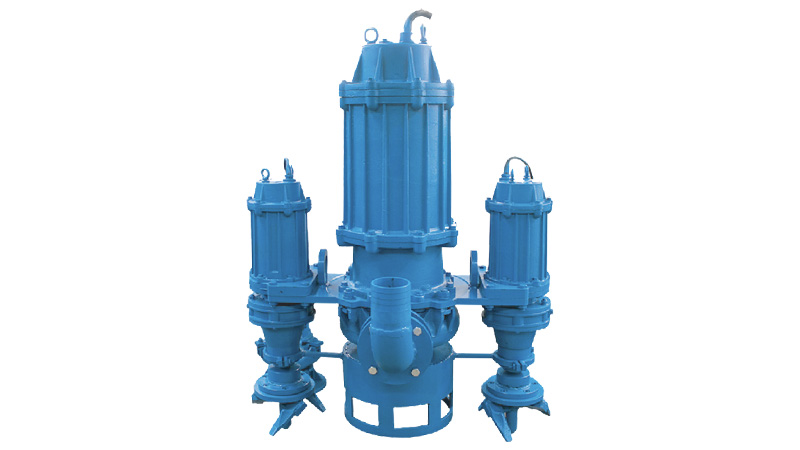

Submersible Slurry Pump
Submersible Pump for Wastewater
Description
Submersible slurry pumps for underwater or wet-pit installation in mining, dredging, and industrial dewatering work involving solids, sludge, and abrasive suspended materials. The pump range supports dirty water, abrasive slurry, viscous sludge, oily waste, chemicals, drilling fluids, and other demanding media. Selection can be matched to solids content, viscosity, required pressure, installation arrangement, and process continuity requirements.
Technical Specs
| Model | Flow (m3/h) | Lift (m) | Motor (Kw) | Speed(RPM) | Outlet (Inch) |
|---|---|---|---|---|---|
| GN50YZ20-18J | 20m³/h | 18m | 3kW | 1450RPM(50Hz) | DN50 |
| 1750RPM(60Hz) | |||||
| GN50YZ40-10J | 40m³/h | 10m | 5.5kW | 1450RPM (50Hz) | DN50 |
| 1750RPM (60Hz) | |||||
| GN80YZ50-20J | 50m³/h | 20m | 7.5kW | 1450RPM(50Hz) | DN80 |
| 1750RPM (60Hz) | |||||
| GN80YZ80-20J | 80m³/h | 20m | 11kW | 1450RPM(50Hz) | DN80 |
| 1750RPM (60Hz) | |||||
| GN100YZ100-30AJ | 90m³/h | 20m | 18.5kW | 1450RPM(50Hz) | DN100 |
| 1750RPM (60Hz) | |||||
| GN100YZ100-30J | 100m³/h | 30m | 22kW | 1450RPM(50Hz) | DN100 |
| 1750RPM (60Hz) | |||||
| GN100YZ100-30ZJ | 120m³/h | 31m | 30kW | 1450RPM(50Hz) | DN100 |
| 1750RPM (60Hz) | |||||
| GN100YZ160-38J | 160m³/h | 38m | 37kW | 1450RPM(50Hz) | DN100 |
| 1750RPM (60Hz) | |||||
| GN150YZ250-40AJ | 200m³/h | 30m | 45kW | 1450RPM(50Hz) | DN150 |
| 1750RPM (60Hz) | |||||
| GN150YZ250-40BJ | 250m³/h | 40m | 55kW | 1450RPM(50Hz) | DN150 |
| 1750RPM (60Hz) |
Key Features
- Options available for abrasive, viscous, corrosive, or solids-laden media
- Selection can be aligned with flow, head, solids content, viscosity, and duty cycle
- Suitable for transfer, recirculation, feeding, dewatering, dosing, and high-pressure service
- Can be supplied as bare pump or integrated with motor and control system
Typical Applications
underwater dredging slurry transfer, mine pit drainage, sediment removal, tailings pond service, and abrasive slurry pumping from wet pits
Selection Information Required
- required flow, head, submersible depth, and discharge distance
- slurry density, particle size, solids concentration, and abrasiveness
- power supply, cable length, motor protection, and cooling condition
- pump material, agitator need, installation method, and outlet connection size
