Description

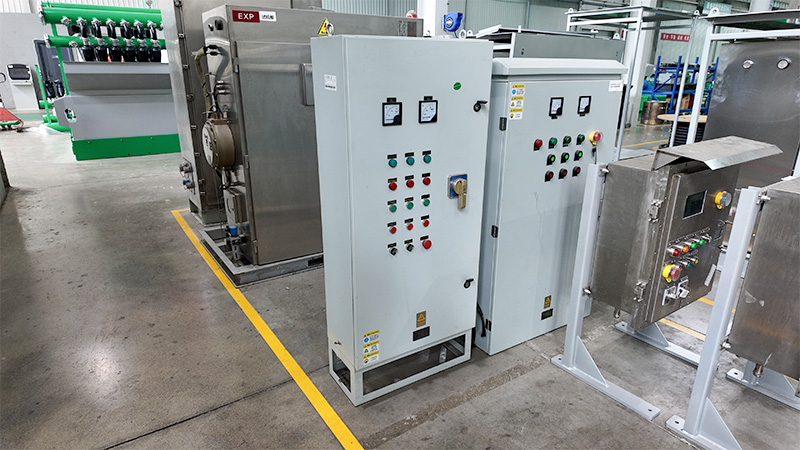

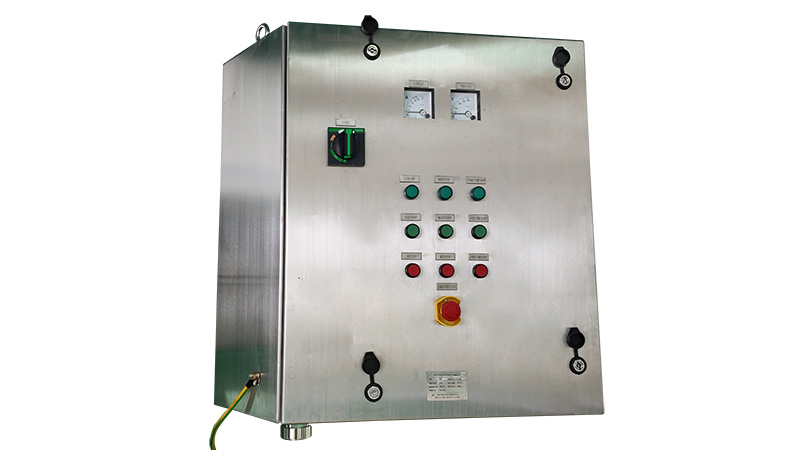

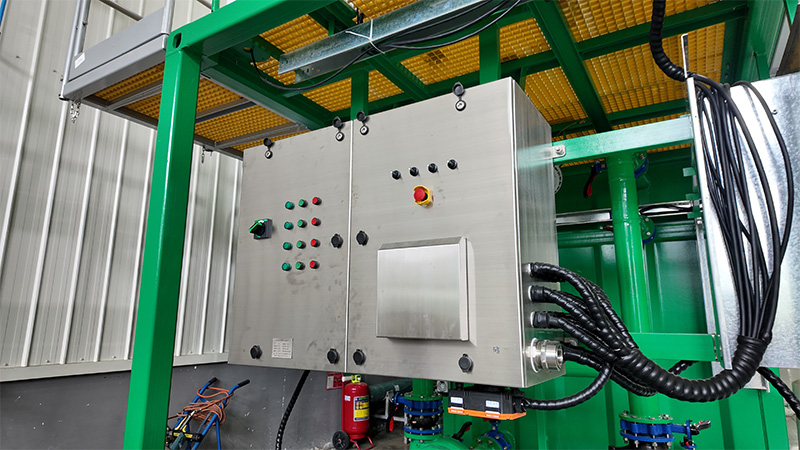

Pump control panel systems for single-pump and multi-pump stations, supporting start/stop logic, level-based control, pressure control, alternation, fault alarm, dry-run protection, and remote monitoring. The panels are designed around real project requirements such as start/stop control, sequencing, feedback display, alarm reset, communication, and future maintenance access. Each design can be adapted to voltage, ingress protection, installation environment, component preference, and site operating logic.

Key Features

• Flexible combination of PLC, HMI, VFD, breakers, relays, instruments, and communication modules
• Clear logic structure for operation, protection, alarm handling, and maintenance
• Panel design adapted to process duty, site conditions, and end-user preferences
• Factory assembly and testing before shipment

Typical Applications

single pump and multi-pump stations, booster systems, wastewater lift stations, dewatering systems, and slurry transfer packages

Selection Information Required

• pump quantity, motor power, power supply, and start method
• control basis such as level, pressure, flow, alternation, or remote command
• required protections including dry run, overload, phase loss, and fault alarm
• local display, communication protocol, enclosure IP rating, and installation environment
