Description

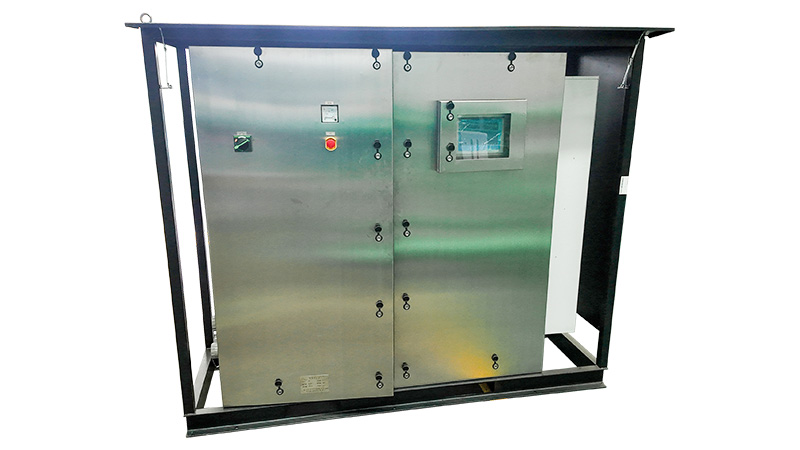

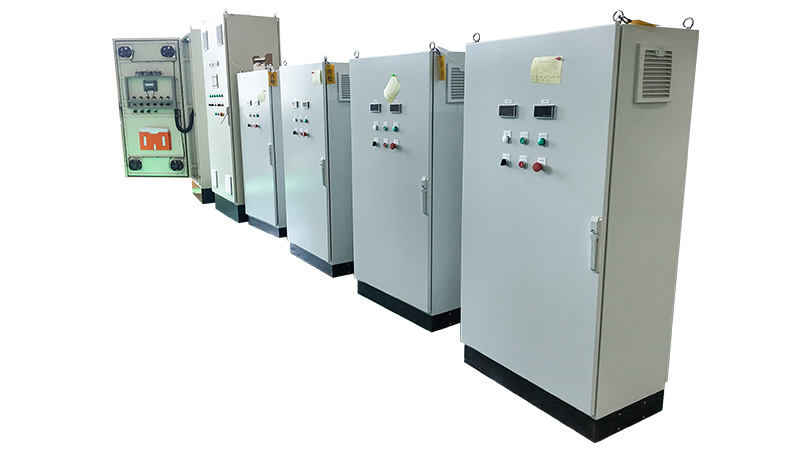

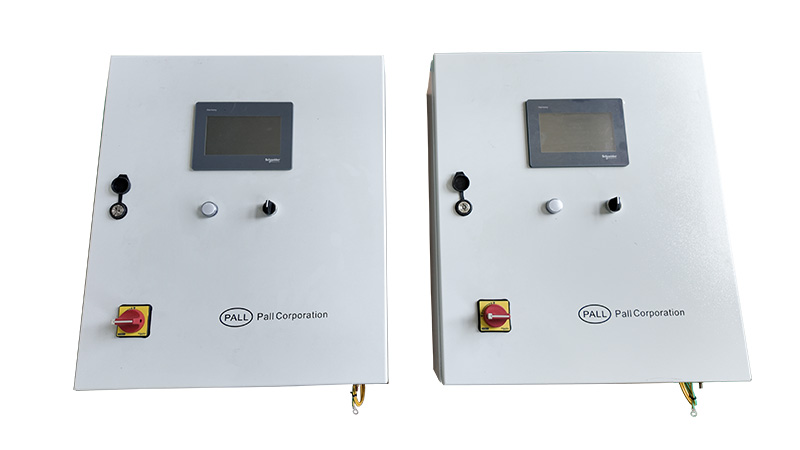

PLC control panels for automated sequencing, interlocking, data collection, alarm handling, and process control. These panels serve as the core control center for pumps, motors, valves, sensors, and auxiliary equipment in industrial systems. The panels are designed around real project requirements such as start/stop control, sequencing, feedback display, alarm reset, communication, and future maintenance access. Each design can be adapted to voltage, ingress protection, installation environment, component preference, and site operating logic.

Key Features

• Flexible combination of PLC, HMI, VFD, breakers, relays, instruments, and communication modules
• Clear logic structure for operation, protection, alarm handling, and maintenance
• Panel design adapted to process duty, site conditions, and end-user preferences
• Factory assembly and testing before shipment

Powered by PLC programmable intelligent main control, combined with AI logical operation and IoT communication technology, we develop a new-generation core intelligent industrial control unit.

Autonomous Intelligent Program Operation

Built-in high-performance PLC main control module with intelligent operation logic independently executes process judgment, timing scheduling and closed-loop linkage control. It replaces cumbersome manual work and realizes full intelligent automatic scheduling of equipment operation.

Intelligent Coordinated Linkage of Multiple Devices

It precisely connects intelligent motors, industrial pump sets, smart meters and sensor terminals to achieve one-click integrated control of various equipment, suitable for fully automatic assembly line operation under complex working conditions.

Real-time Data Collection & Intelligent Analysis

Collects full-range operating data including voltage, current, rotating speed, pressure and flow rate. The built-in algorithm intelligently evaluates operating status and automatically generates operational data reports.

Cloud-based Remote Intelligent Management

Compatible with mainstream communication protocols such as Ethernet and MQTT. Connected to the intelligent management platform, it supports remote program editing, parameter commissioning, start-stop control and online inspection, achieving unattended intelligent operation and maintenance.

Intelligent Fault Self-diagnosis & Early Warning

Equipped with automatic fault detection to accurately locate abnormalities of circuits, loads and components. Acoustic and light alarms as well as cloud message reminders are triggered instantly to predict potential risks and greatly reduce downtime failure rate.

Adaptive Intelligent Adjustment to Working Conditions

Automatically adjusts operating frequency, output power and operation mode according to on-site condition changes, dynamically matching production demands for high efficiency, energy conservation and cost reduction.

Modular Intelligent Expansion & Upgrade

Adopts standardized modular structure. AI control units, frequency conversion modules and wireless transmission modules can be flexibly installed to be compatible with diverse intelligent terminals, enabling convenient and efficient system upgrade and function expansion.

Multi-layer Intelligent Safety Protection

Integrated protection against overload, short circuit, phase loss, overheating and undervoltage. The equipment shuts down and locks automatically under abnormal conditions, ensuring stable and safe operation in harsh industrial scenarios such as oil, mining and wastewater treatment.

Typical Applications

pump stations, dosing skids, conveyors, filtration systems, mixing packages, and process lines requiring sequencing and interlocking control,large-scale integrated automation projects covering oil & gas, mining, wastewater treatment, tunnel engineering, municipal water supply, large industrial zones, complete pump units and pumping stations

Selection Information Required

• equipment list and required process sequence or control description
• digital and analog I/O list, instrument list, and interlock requirements
• preferred PLC and HMI brand, communication protocol, and remote system interface
• power supply, enclosure rating, installation environment, and panel mounting method
