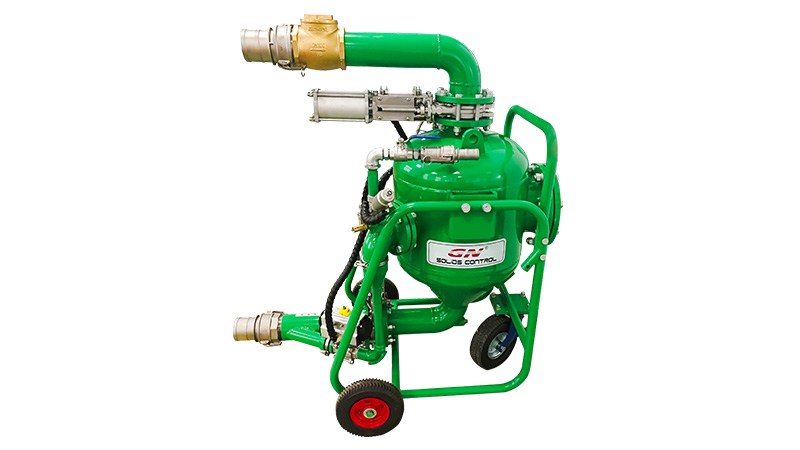

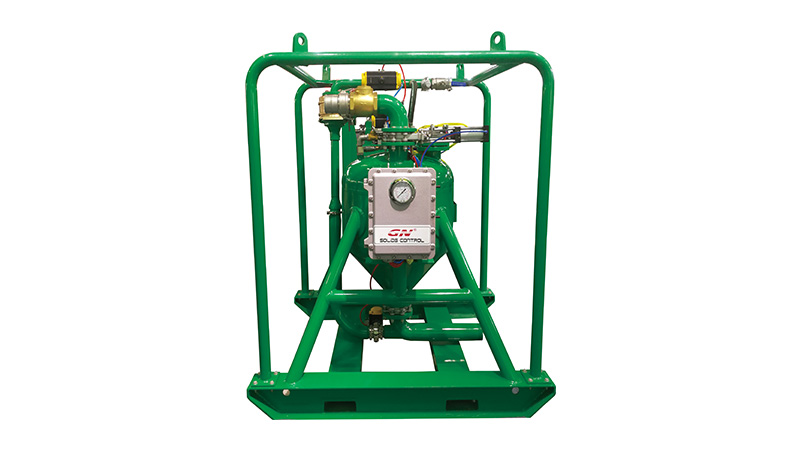

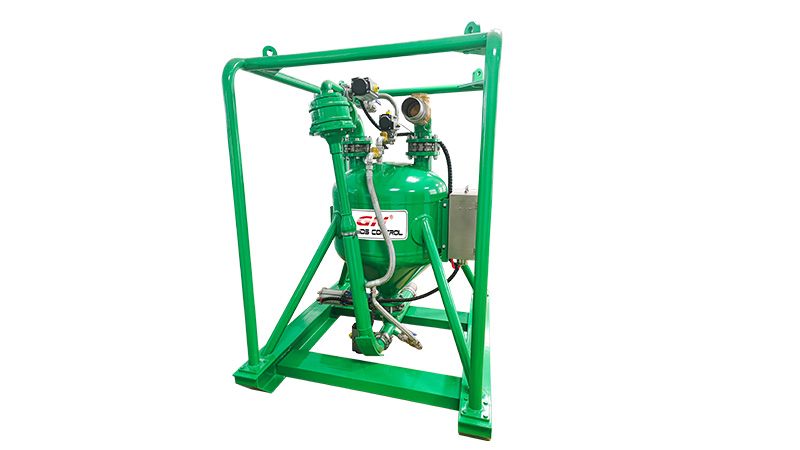

Sludge Vacuum Pump
Slurry Vacuum Pump
Description
Slurry Vacuum Pump for collection and transfer of sludge, semi-solids, and difficult waste streams where suction capability and convenient material handling are important. The pump range supports dirty water, abrasive slurry, viscous sludge, oily waste, chemicals, drilling fluids, and other demanding media. Selection can be matched to solids content, viscosity, required pressure, installation arrangement, and process continuity requirements.
GN Slurry Vacuum Pump Parameter
| Model | GNSP-40B | GNSP-20B | GNSP-10B |
|---|---|---|---|
| Max Capacity(m³/h) | 40m³/h | 20m³/h | 10m³/h |
| Inlet/Outlet Size(Inch) | 4”(114mm) |
4”(114mm) | 3”(89mm) |
| Vacuum Degree | 85Kpa/25 inch HG (Mercury Column) | ||
| Max Suction Distance(m) | 50m | ||
| Max Discharge Distance(m) | 1000m | 500m | |
| Max Solids Content | 80% | ||
| Max Solids Size(mm) | 75mm | 50mm | |
| Pressure Request | 550Kpa-785Kpa (80-114PSI) | 550Kpa-690Kpa (80-100PSI) | |
| Air Demand | 17m³/min (600CFM) | 8m³/min(280CFM) | 4.3 m³/min(150CFM) |
| Weight(kg) | 892kg | 386kg | 320kg |
| Dimension:L×W×H(mm) | 1690×1468×1983mm | 1421×900×1448mm | 1283×800×1370mm |
| The above specification and parameters for reference only. | |||
GN Vacuum Cleaner for Industrial Waste
Key Features
- Options available for abrasive, viscous, corrosive, or solids-laden media
- Selection can be aligned with flow, head, solids content, viscosity, and duty cycle
- Suitable for transfer, recirculation, feeding, dewatering, dosing, and high-pressure service
- Can be supplied as bare pump or integrated with motor and control system
Typical Applications
tank and pit cleanout, sludge suction collection, oily waste recovery, sump evacuation, and semi-solid waste transfer requiring suction capability
GN Sludge Vacuum Pump Working Video
Selection Information Required
- medium type, viscosity, solids size, solids content, and temperature
- required suction lift, discharge distance, flow rate, and operating mode
- vacuum source or integrated system requirement, material, and hose connection size
- power source, mobility requirement, and hazardous-area or outdoor-use condition
